2019 SUR RON TECH SUMMARY bike store

Dimension and Weights



Length:  1870 mm

Width:  780 mm

Height:  1040 mm

Ground clearance:  270 mm

Wheelbase:  1260 mm

Seat Height:  810 mm

Vehicle weight:  50 kg

Weight distribution of Fr. Wheel axle: 24 kg

Weight distribution of Rr. Wheel axle: 26 kg

Max. load capability: 100 kg

Angle & Stroke


Forward inclining angle: 26 °

Steering angle:  46 °

Front Absorbers stroke: 200 mm

Rear Absorber/Wheel stroke: 87/210 mm

Performance & Transmission

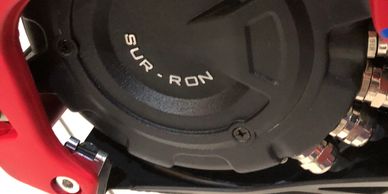

Max. motor rotation speed: 4500rpm

Cooling method: Air-cooled

Climbing angle:  35° (≥45° with accessory kit)

Max. speed:  73km/h

Range:  100km @ 20km/h

Max. torque: 200Nm

Gearshift type and transmission ratio: 1:7.6

Transmission type: Belt + Chain

Belt brand and model: ContiTech HTD 8M CXA

Rear sprocket: 48T-106 (Standard)

Frame & Shock Absorbers


Frame type:  Aluminum alloy double cradle design

Frame colour options: Steel-Grey, Silver-White, Green

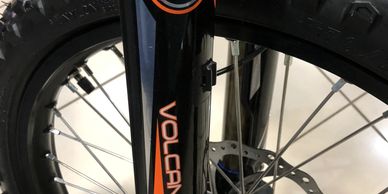

Front shock absorber options:  RST Killah Forks or DNM USD-8S Forks

Shock Absorber Fr.: Double-tube telescopic shock absorber

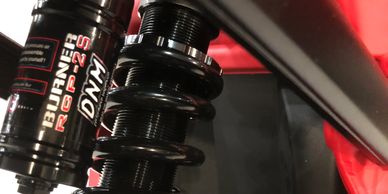

Shock Absorber Rr.: Multi-link central shock absorber

350lbs (Standard)

Tyres & Brakes


Tyre size Fr.: 70/100-19

Tyre size Rr.: 70/100-19

Wheel type Fr.:  19 x 1.4

Wheel type Rr.:  19 x 1.4

Brake type Fr.: Bilateral 4 piston hydraulic disc brake

Brake type Rr.: Bilateral 4 piston hydraulic disc brake

Electronics


Controller type:  48V and 60V self-adaptable

ECU type:  GPS Data connection

Horn:  European standard horn

60V charger, 67.2V @ 10A, 3 hour fast charge

Battery Pack 48 Volt: Configuration: 14S10P

Cells: 140 Knaptech 18650 2500mAh

Capacity: 25Ah, 1200Wh

Battery Pack 60 Volt: Configuration: 16S11P

Cells: 176 Panasonic NCR18650PF 2900mAh

Capacity: 32Ah, 1920Wh

Headlight type:  LED

Brake light type:  LED

USB power source: Single USB socket 2100mA (phone charger)

Dashboard:  IBN negative LCD display mtb online
